ENHANCING FUNCTIONS
DESIGN ENHANCING
FUNCTIONS
& File Scanner
CZUR Lens Pro
Dual-use camera
See the Aura in Action
Watch this Video NOW
touching your heart
Any placement in the desktop space
Portable
Any placement in the desktop
space Portable
+ large depth of field
= Fast and Clear
No need to focus
Scanning at power-on
What you see is what you get
More uniform scanning imaging
Camera mode, lever fold and LED lights off
Non-disturbing Non-dazzling
profound black technology
Intelligent Software
OCR (Optical Character Recognition)
Auto-Scan
All done automatically by the software
Output with one click
CZUR Lens
Programming
Languages
OCR software supports 180+ languages
Basic/C++/Fortran/JAVA/Pascal more programming languages
Convert scanned images into editable documents
High Optical Character Recognition accuracy —— Up to 99%
Auto-Scan
Free your hands
Auto page-turning detecting
Makes scanning than ever before easier
Powerful functions meet all your needs
Combining the front and back side
Add watermark
Barcode &QR recognition
Multi-page composition
Frame select area scanning
HD Visual Presenter
Real-time screen Easy to label Zoom in Add text
Work/ Study from home can be easier by screen sharing
Rotate the lever
switch the shooting mode
Elaborate structure makes perfect
No extra- camera required
Easy portrait capture, video conferencing
No extra- camera required
Easy portrait capture, video conferencing
Rotate the lever
switch the shooting mode
Elaborate structure makes perfect
No extra- camera required
Easy portrait capture, video conferencing
No extra- camera required
Easy portrait capture, video conferencing
CZUR Camera is powerful
All-in-one camera
Rotate the lever switch the mode
Settings Filter
Adding watermark
HD video with audio recording
Start screen recording,
Ease of operation
Recorded online meetings / lectures can be exported directly
Ease of operation
Recorded online meetings / lectures can be exported directly
Direct export of recorded online meetings/ lectures
HD video with audio recording
Start screen recording,
Ease of operation
Recorded online meetings / lectures can be exported directly
Direct export of recorded online meetings/ lectures
Ease of operation
Recorded online meetings / lectures can be exported directly
Direct export of recorded online meetings/ lectures
CZUR Lens
&
CZUR Camera
Professional dual-software
High compatibility
Support XP / Win7 / Win8 / Win10, 32-bit / 64-bit & Support Mac OS

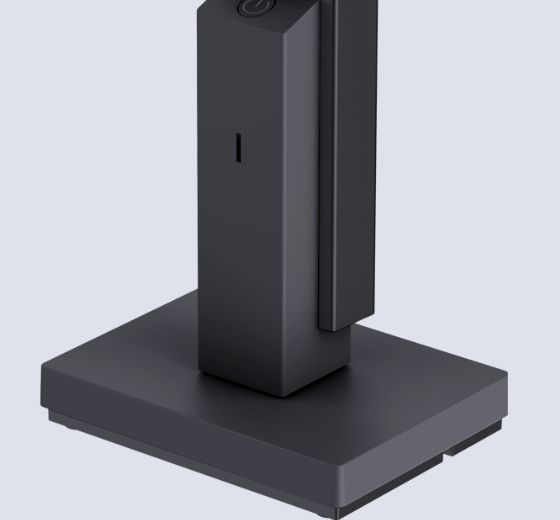

The base has three interfaces,
Three-way line out
Three-way line out
Details tribute to craftsmanship
Application Scenario
Finance
Insurance
Education
Communication
Government
Enterprise
Technical Specifications
Basic Information
| Brand | CZUR |
| Model | Lens 1200 Pro |
| Region | Overseas |
| Product Type | Smart Scanner |
| Product Series | CZUR Lens |
| Application scene | Enterprise, Education, Family, Personal and so on |
| Scanning Material | Documents, archives, forms, vouchers, ID documents and so on |
Regular Parameter
| Sensor | CMOS |
| Pixel | 12 megapixels |
| Resolution | 4032*3024 |
| DPI (default) | ≈330 |
| Scan Format | ≤A4 |
| Scan Speed | ≤1 sec |
| Pre Scan | 0 sec |
| Image Format | JPG、TIFF |
| Image Color | 24 bits |
| Static File Output Format | JPG, PDF, Searchable PDF, Word, Excel |
| Dynamic File Output Format | MP4 |
| Video Stream Format | MJPG,Switchable YUV |
| Video Parameter | MJPG 4032*3024@15fps |
| Focus Mode | Fixed focus |
Optics
| Lens Structure | 3G2P+IR |
| Light-Sensing Surface | 1/3.2" |
| EFL | 4.7mm±5% |
| BFL | 6.18mm±5% |
| F/NO. | 3.5 |
| IR Cut | 650±10nm |
| Angle | 62°±5% |
| Distortion | ＜0.5% |
Configuration Parameter
| Ports | Type-c |
| Hall switch Sensor | √ |
| Power Indicator Light | White |
| Major Microphone | Digital MIC |
| Scan Light Source | Natural light 、 LED fill light |
| LED Fill Light | Support |
| Top LED adjustment mode | Smart Control: Turn off the light when crossbar closed and turn on the light when crossbar unfolded automatically; Key Control: ON, OFF. |
| Side Fill Light | × |
| Foot Pedal | × |
| Soft Document Pad | Support |
| Power | USB 5V/500mA |
Specific Function
| Document Scanning | √ |
| Visual Presenter | √ |
| Major Camera Scene Shooting | √ |
| Deputy Camera Scene Shooting | × |
| Base Rotation | √ Rotate 180 degrees horizontally |
| Face recognition | × |
| OCR Text Recognition | Support 185 languages |
| TWAIN Port | × |
| SDK Development Package | × |
Software Function
| Smart Tilt Adjustment and Auto-Cropping | √ |
| ID card left blank in corner | √ |
| Adjust by text direction | √ |
| Manual Selection Scanning | √ |
| Background Purifying | √ |
| Combining the Front and the Back Sides in Scanning | √ |
| Combine Muti-pages into one | x |
| Add Watermark | √ |
| Bar Code Recognition | √ |
| QR Code Recognition | √ |
| Multi business card smart cutting and splitting | √ |
| Inteligent completion of damaged pagescutting and splitting | √ |
| Book scanning and surface flatteningcutting and splitting | x |
| Videocutting and splitting | 1920*1080 and 1600*1200 optional, contains sound |
| Scan Methodcutting and splitting | PC software triggering, auto-scan after page turning detection |
| OS | XP/Win7/Win8/Win10, 32-bit or 64-bit；MacOS |
Packaging and Accessories
| Product Color | Black |
| Product Dimension | 325.5*105*78.5mm |
| Product Weight | 0.42 Kg N.W. 1.05kg G.W. |
| Packaging List | Scanner, Type-C Cable, Soft Document Pad, CD, Getting Started Guide |
